EASYPLACER.V Manual SMD Manipulator -


V900121 - EASYPLACER.V Manual SMD Manipulator

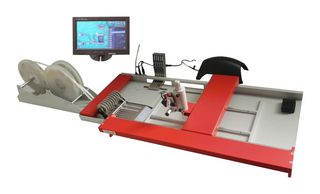

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
Order Code:
Technical Datasheet:
V900121   Datasheet
Catalogue page:
See all Technical Docs

Product Overview

The V900121 is an EASYPLACER.V hand-operated SMT Assembly Manipulator with video, new manual system for the placement of SMT-components. It is a perfect ergonomic station including a lot of functions. Slight arm movement in axis X and Y allows comfortable choosing components and their placing all over the workplace. Place component with the head on the Z axis. Can rotate also easily the component on 360°. A camera located near the vacuum pipette and connected to monitor helps the operator for the placement of fine-pitch components. The solid reliable construction provides a better grip for the operator with a larger working area of 380 x 295mm.
  • Perfect ergonomics
  • Very efficient working area of 380x295mm
  • Placement make easier by camera connected to a 9" TFT LCD monitor, included as standard
  • 0201 Placement accuracy
  • Arm support assures a comfortable position for operator
  • Sensitive head with 360° rotation of pipette
  • Efficient lighting built into the arm
  • Vacuum pump delivered as standard
  • 3 Board supports
  • <70dB(A) Sound level
  • 230V at 50/60Hz Electrical supply




Placement station, colour camera, TFT monitor, 2x needles, rubber prehension discs and 3x PCB holders

Product Information

Hand Operated SMT Assembly Manipulator EASY PLACER.V
