Discrete Op-Amp Project Kit -

DOA

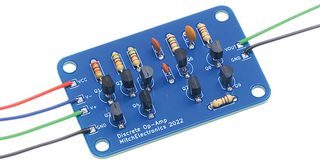

DOA - Discrete Op-Amp Project Kit

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
DOA
Order Code:
HK01813
Technical Datasheet:
DOA   Datasheet
See all Technical Docs

Product Overview

A key component for modern electronics, the op-amp can be used for a wide range of tasks. The DOA kit allows you to build a fully working discrete op-amp that can be used in various configurations. Designed to be a useful teaching aid, this op-amp actually has poor characteristics which makes for excellent lesson material covering all the characteristics. Supplied in kit form, the project can be assembled in under an hour and is recommended for A-Level lessons or higher.
  • An op-amp is an operational amplifier and they can be used to make many different circuits
  • Build a simple op-amp and learn the basics of how op-amps function
  • Comprehensive online documentation that explains each component
  • Recommended for A-Level students and above
  • Supplied in kit form, the project can be assembled in under an hour
  • 5V-20V Operating voltage
  • PCB Dimensions: 29x44mm

Product Information


:
-
