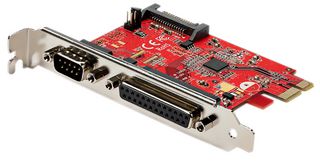

DB9 Serial & DB25 Parallel PCI-Ex Combo Adaptor Card - PEX1S1P950
Image is for illustrative purposes only. Please refer to product description.
ManufacturerSTARTECH
Manufacturer Part NoPEX1S1P950Copy
Manufacturer Standard Lead Time2 weeks
Order CodeCS34502
Also Known AsGTIN UPC EAN: 0065030891844
2 In Stock
Need more?
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | €44.28 |
Price for:Each
Minimum: 1
Multiple: 1
€44.28 (ex VAT)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerSTARTECH
Manufacturer Part NoPEX1S1P950Copy
Manufacturer Standard Lead Time2 weeks
Order CodeCS34502
Also Known AsGTIN UPC EAN: 0065030891844
Technical Datasheet
Networking InterfaceSerial, Parallel
Product Range-
SVHCNo SVHC (17-Jan-2023)
Product Overview
PC Interface card that provides a DB25 parallel port and DB9 RS232 serial port via a PCI-Express slot, adding legacy functionality to modern PCs; suitable for connecting a wide range of legacy equipment such as printers, scanners, sensors and PoS terminals.
- Parallel/Serial combo adaptor card built around an Asix AX99100 chip
- Maximum transfer rates up to 2.5Mb/s (parallel), 921.6Kb/s (serial)
- Parallel port is IEEE 1284 compatible and supports SPP/Byte/Nibble/ECP modes
- Serial port is compatible with 16950 UART with 256 byte FIFO buffer
- Optional SATA power input that enables power on pin 9 of the Serial port with adjutable power output (5V-12V)
- Compliant with PCI Power Management 1.2
- Installs via full size PCI-Ex 2.0 x1 slot
- Supports Windows 7/8/10, Windows Server 2003+ and Linux 2.4.x-2.6.x (LTS versions only)
- Lifetime limited manufacturer warranty
Technical Specifications
Networking Interface
Serial, Parallel
SVHC
No SVHC (17-Jan-2023)
Product Range
-
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:84718000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Jan-2023)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.12
WEEE Code:0314
