RASPBERRY-PI
The Raspberry Pi is a powerful credit-card sized micro-computer that can do anything a desktop computer can do. The board was designed to help both kids and adults learn how to programme and get started in the world of computers, all at an affordable price, making the Raspberry Pi a fantastic tool for coding in languages such as Python and Scratch. The single-board computer comes with built-in ports allowing it to interact with the outside world – it can accept accessories such as a keyboard, mouse, monitor or camera, as well as connect to the Internet, and more.
The Raspberry Pi lets you browse the web; take videos and photographs; play music and high-definition videos; or if you just need to work on a word-processor, it can do that too. Being Internet-connected gives the Raspberry Pi the ability to let makers create Raspberry Pi projects such as weather stations; voice assistants; game consoles – the possibilities are endless.
Raspberry Pi Boards
The latest addition to Raspberry Pi…
The New Raspberry Pi 4 Model B
Raspberry Pi 4 Model B is the latest product in the popular Raspberry Pi range of computers. It offers ground-breaking increases in processor speed, multimedia performance, memory and connectivity.
Improved Performance…
The New Compute Module 4
Compute Module 4 is built on the 64-bit quad-core BCM27 11 application core processor. The Compute Module 4 deliver a step change in performance over its predecessors such as faster CPU cores, better multimedia and more interfacing capabilities.
Comparison Chart
| Raspberry Pi Model A+ | Raspberry Pi Model B+ | Raspberry Pi 2 Model B | Raspberry Pi 3 Model A+ | Raspberry Pi 3 Model B | Raspberry Pi 3 Model B+ | Raspberry Pi 4 Model B | Raspberry Pi Compute Module | Raspberry Pi 3 Compute Module | Raspberry Pi 3 Compute Module Lite | Raspberry Pi Compute Module 3+ Lite | Raspberry Pi Compute Module 3+ | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions | 65x56mm | 85x56mm | 85x56mm | 65x56mm | 85x56mm | 85x56mm | 85x56mm | 67.6x30mm | 67.6x31mm | 67x31mm | 67.6x31mm | 67.6x31mm |
| Software | Linux | Linux | Linux | Linux | Linux | Linux | Linux | Linux | Linux | Linux | Linux | Linux |
| Processor | BCM2835 | BCM2835 | BCM2836 | BCM2837B0 | BCM2837 | BCM2837B0 | BCM2711 | BCM2835 | BCM2837 | BCM2837 | BCM2837B0 | BCM2837B0 |
| ARMv6 | ARMv6 | ARMv6 | ARMv7 | ARM Cortex-A53 | ARM Cortex-A53 | ARM Cortex-A53 | ARMv8 | ARMv6 | ARMv8 | ARMv8 | ARM Cortex-A53 | ARM Cortex-A53 |
| CPU Speed | 700MHz | 700MHz | 900MHz | 1.4GHz | 1.2GHz | 1.4GHz | 1.5GHz | 700MHz | 1.2GHz | 1.2GHz | 1.2GHz | 1.2GHz |
| Cores | Single | Single | Quad | Quad | Quad | Quad | Quad | Single | Quad | Quad | Quad | Quad |
| RAM | 256MB | 512MB | 1GB | 512MB | 1GB | 1GB | 2GB/4GB/8GB | 512MB | 1GB | 1GB | 1GB | 1GB |
| Storage | MicroSD | MicroSD | MicroSD | MicroSD | MicroSD | MicroSD | MicroSD | 4GB eMMC | 4GB eMMC | 4GB eMMC | - | 8GB/16GB/32GB eMMC |
| LAN | - | 10/100mb Ethernet | 10/100mb Ethernet | - | 10/100mb Ethernet | *10/100/1000mb Ethernet | 10/100/1000mb Ethernet | - | - | - | - | - |
| Wireless | - | - | - | 2.4GHz/5GHz | 802.11 b/g/n | 2.4GHz/5GHz | 2.4GHz/5.0GHz | - | - | - | - | - |
| Bluetooth | - | - | - | 4.2/BLE | 4.1/BLE | 4.2/BLE | 5.0/BLE | - | - | - | - | - |
| GPIO Pins | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 48 | 48 | 48 | 48 | 48 |
| Video Out | HDMI/ | HDMI/ | HDMI/ | HDMI/ | HDMI/ | HDMI/ | 2 x micro HDMI | HDMI (via EDGE connector) | HDMI (via EDGE connector) | HDMI (via EDGE connector) | HDMI (via EDGE connector) | HDMI (via EDGE connector) |
| 3.5mm/DSI | 3.5mm/DSI | 3.5mm/DSI | 3.5mm/DSI | 3.5mm/DSI | 3.5mm/DSI | 3.5mm/DSI | 3.5mm/DSI | DSI (via EDGE connector) | DSI (via EDGE connector) | DSI (via EDGE connector) | DSI (via EDGE connector) | DSI (via EDGE connector) |
| Audio Out | HDMI/ | HDMI/3.5mm | HDMI/3.5mm | HDMI/3.5mm | HDMI/3.5mm | HDMI/3.5mm | HDMI/3.5mm | HDMI / Composite / Analogue (via EDGE connector) | HDMI / Composite / Analogue (via EDGE connector) | HDMI / Composite / Analogue (via EDGE connector) | HDMI / Composite / Analogue (via EDGE connector) | HDMI / Composite / Analogue (via EDGE connector) |
| USB 2.0 Ports | 1 | 4 | 4 | 1 | 4 | 4 | 2 | - | - | - | - | - |
| USB 3.0 Ports | - | - | - | - | - | - | 2 | - | - | - | - | - |
| Input Voltage | 5V | 5V | 5V | 5V | 5V | 5V | 5V | 5V | 5V | 5V | 5V | 5V |
| Order Code | SC14138 | SC13456 | SC14210 | SC14977 | SC14013 | SC14882 | SC15184 SC15185 SC15613 | SC13437 | SC14353 | SC14354 | SC15055 | SC15056 SC15057 SC15058 |
*Note: The Pi 3 B+ uses Gigabit technology but is restricted by the USB bus to a maximum of 480Mb/s.
Raspberry Pi Kits
Higher Performance & Low Cost!
Pico RP2040 Microcontroller Development Board
Built around the Raspberry Pi RP2040 chip, the Pico features flexible digital interfaces and can be easily programmed over USB using C/C++ or MicroPython, thanks to a comprehensive SKD with software examples and full documentation.
Everything you need out of the box…
Raspberry Pi 4 2GB Starter Kit, White
Find everything you need to get up and running with the new Raspberry Pi 4!
Officially Excellent!

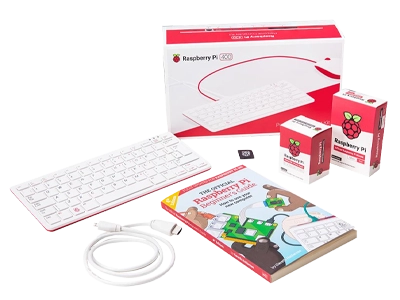

Raspberry Pi 400 4GB Official Start-up Kit
The start-up kit includes a Raspberry Pi 400, pre-programmed SD card, power supply, mouse, a beginner's guide and micro HDMI cable.
Raspberry Pi Accessories
The Official…
New Raspberry Pi Keyboard
Designed for use with Raspberry Pi products, this stylish keyboard also comes complete with 3 integrated USB 2.0 ports.
Watch digital terrestrial TV
New TV-uHAT for Raspberry Pi
Use this HAT to view DVB-T and DVB-T2 digital broadcasts and stream transmissions over a network to other devices.
Power your Pi over Ethernet…
PoE HAT for Raspberry Pi 3 Model B+
Use this HAT to power a Raspberry Pi via an Ethernet cable, removing the need for a separate power supply - an ideal solution for embedded and IoT projects.
Explore Coding
Learn how to program in languages like Scratch and Python with the Raspberry Pi.
Raspberry Pi is capable of doing everything you’d expect a desktop computer to do, from browsing the internet and playing high-definition video, to making spreadsheets, word-processing and playing games.
Physical Computing
Raspberry Pi has the ability to interact with the outside world through a wide variety of digital projects, from home media centres and arcade gaming systems, to autonomous robots and automated irrigation systems
