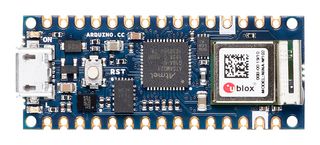

Arduino Nano 33 IoT Development Board, ARM Cortex-M0+ -

ABX00027

ABX00027 - Arduino Nano 33 IoT Development Board, ARM Cortex-M0+
ABX00027 - Arduino Nano 33 IoT Development Board, ARM Cortex-M0+
ABX00027 - Arduino Nano 33 IoT Development Board, ARM Cortex-M0+
ABX00027 - Arduino Nano 33 IoT Development Board, ARM Cortex-M0+
ABX00027 - Arduino Nano 33 IoT Development Board, ARM Cortex-M0+
ABX00027 - Arduino Nano 33 IoT Development Board, ARM Cortex-M0+

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
ARDUINO ARDUINO
Manufacturer Part No:
ABX00027
Order Code:
SC18537
Also Known As:
GTIN UPC EAN: 7630049201460
Technical Datasheet:
ABX00027   Datasheet
See all Technical Docs

Product Overview

Arduino Nano 33 IoT is a small, robust and powerful board with Wi-Fi and Bluetooth connectivity combined with its low power architecture makes it a practical and cost effective solution. It is fully compatible with the Arduino IoT Cloud and supports full TLS secure transport. The ATECC608A cryptochip stores the cryptographic keys in hardware, offering a very high level of security for this class of products. The integration with the Arduino IoT Cloud offers also a very efficient way of setting up online dashboards with little coding and minimal effort. It is an easiest and cheapest point of entry to enhance existing devices (and creating new ones) to be part of the IoT and designing pico-network applications. The Wi-Fi and Bluetooth® connectivity is performed with a module from u-box, the NINA-W10, a low power chipset operating in the 2.4GHz range. It is perfect for simple vibration alarm systems, pedometers, relative positioning of robots.
  • SAMD21 Cortex®-M0+ 32bit low power ARM MCU
  • Radio module u-box NINA-W10, secure element ATECC608A
  • Operating voltage of 3.3V
  • Clock speed is 48MHz, CPU flash memory is 256KB, SRAM is 32KB
  • 11 PWM pins, 1 UART, 1 SPI, 1 I2C
  • 8 (ADC 8/10/12bit) analogue input pins, 1 (DAC 10bit) analogue output pins
  • LSM6DS interial measurement unit (IMU)
  • Length is 45mm, width is 18mm, weight is 5g (with headers)

Product Information


:
Microchip

:
32bit

:
SAMD21

:
ARM

:
Cortex-M0+

:
SAMD21G18A

:
Nano 33 IoT Dev Board SAMD21

:
-

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (2)

Also Known As

GTIN UPC EAN: 7630049201460
