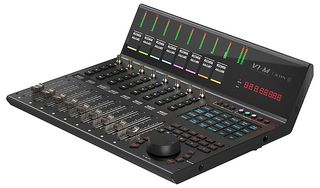

USB MIDI DAW Controller -
V1-M
- Manufacturer:
- ICON ICON
- Manufacturer Part No:
- V1-M
- Order Code:
- DP38055
- Product Range
- ICON - V1 Series
- Also Known As:
- GTIN UPC EAN: 4897022375720
Product Range Selector (ICON - V1 Series)
See all from this product rangeProduct Overview
- Hands On Control: The V1-M has 8 channels of motorized faders, which can be expanded up to 64 channels with the addition of optional V1-X DAW Control Expanders
- Customisable Touchscreen with 5 colour coded layers of commands that can be used to control your DAW and match your specific workflow
- Large TFT display and meter bridge show the current levels, pan positions, and other information
- Compatible with DAWs, including Bitwig, Cubase/Nuendo, Logic Pro X, Ableton Live, and Pro Tools, you can run up to 3 DAWs at one time with no interruption
- 9x touch-sensitive motorized faders with 12-bit resolution
- Organise DAW functions in the 24 panel touchscreen easily via ‘drag and drop’ in the iMAPTM – changes made in real time
- Capability of connecting to 3 DAWs at one time via the DAW select buttons
- Extremely hardwearing, durable and versatile
- Onboard 2 inch TFT display showing channel name, control values, channel colors etc., (DAW dependent)
- Attractive, modern meter bridge, featuring precise, clear and eye-catching LED meters
- Additional lower 1.14 inch TFT display for each channel (some DAWs are equipped to display additional information on this screen)
- Extremely high quality, large optical encoder jog wheel with very precise, smooth control for fast search, scrub etc.
- 8 Smooth action dual-function encoder knobs (Rotate and Enter) (bars:beats:ticks) formats
- Illuminated function buttons for ‘Read’, ‘Write’, ‘Touch’, ‘Latch’, ‘Trim’; and ‘Off’ – activated/deactivated as required per DAW
- Illuminated buttons for channel control including Mute, Solo and Record
- 6 Illuminated transport buttons including Play, Stop, Record, Rewind, Fast Forward and Loop
- Dedicated ‘Master/Assign’ button for quick switching the Master fader from the master channel to a pre-designated track
- Illuminated “Zoom” button with 2 d directional keys (Left/Right & Up/Down), also used in combination with the jog wheel
- Illuminated ‘Focus’ button which allows the user to “focus” in and adjust plug-in, EQ parameters etc. via the smooth-action jog wheel
- 2 illuminated “Track” buttons for selecting individual channels
- 2 illuminated “Bank” buttons for shifting 8-channels at a time
- Superior build quality and robust metal casing with Kensington lock port
- Dimensions (WxDxH): 485mm x 384.5mm x 178mm
- Weight: 5.6kg
- Weight: 5.6kg
Product Information
- :
- ICON - V1 Series
- :
- UK Type G
Technical Documents (3)
