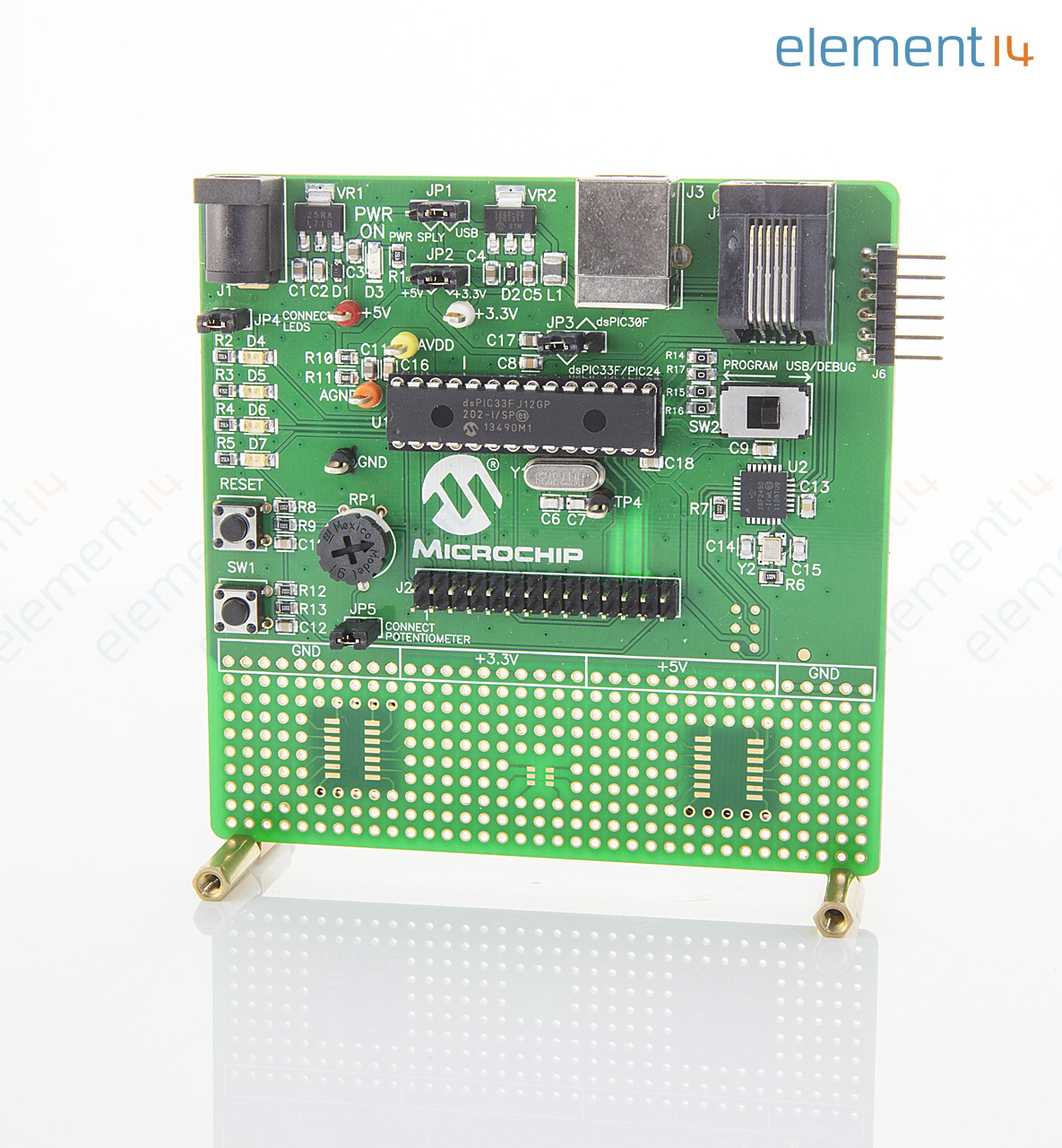

DEVELOPMENT BOARD KIT, 16-BIT, 28-PIN -

DM300027

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
MICROCHIP MICROCHIP
Manufacturer Part No:
DM300027
Order Code:
SC09891

Product Overview

The DM300027 is a low cost 16bit 28 Pin starter development board an easy to use tool that allows you to start development with dsPIC30F/dsPIC33F and PIC24 devices. The 16bit 28 Pin starter development board is supplied with a preloaded device that demonstrates the following board functionality Interrupt handling using timer1 to toggle the LEDs, UART functionality using the on board USB to echo characters sent from a PC terminal programmed with a 9600 baud rate. The development board has the option of being powered by a 9V DC power supply or by the USB bus. The position of jumper JP1 determines which power source is used. Connect jumper pins 1 and 2 for the 9V power supply or jumper pins 2 and 3 for the USB. In addition, jumper JP2 selects either 5V or 3.3V power source for the targeted device. The dsPIC30F/dsPIC33F and PIC24 devices use an on board PIC18 and USB interface for UART communications.
  • Prototyping tool for all 28 pin, SDIP PIC24, dsPIC30F and dsPIC33F devices
  • Includes a 28 pin PIC24FJ64GA002 and dsPIC33FJ12GP202
  • On board regulators for 3.3V or 5V operation
  • Power input from 9V power supply or USB power source
  • Single UART communication channel via USB bridge
  • Connectors for MPLAB ICD 2 in circuit debugger/programmer and PICkit 2
  • Header for access to all device I/O pins
  • Circuit prototyping area including pads for SOIC and SOT 23 devices

Applications

Embedded Design & Development, LED Lighting, Signal Processing

Contents

16bit, 28 pin Starter Board, 28 pin PIC24FJ64GA002 device, USB cable, Example software and documentation on CD.
