Induction Loop Kit, TV Lounge and Studies -

PDA103S

PDA103S - Induction Loop Kit, TV Lounge and Studies
PDA103S - Induction Loop Kit, TV Lounge and Studies
PDA103S - Induction Loop Kit, TV Lounge and Studies

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
PDA103S
Order Code:
DP34978
Product Range
Signet PDA103

Product Range Selector (Signet PDA103)

See all from this product range

Product Overview

The PDA103S kit contains everything you need to create a high quality domestic hearing loop system for bedrooms, living rooms, TV lounges and studies up to 50m² in size (7m x 7m). Designed to connect to TV sets using the amplifier’s ‘Outreach’ connector via the APL plate and SCART lead supplied, alternatively the amplifier can be connected to TV sets using the amplifier’s onboard Digital TOS-link connector.
  • PDA103 amplifier includes a microphone input, line level input, digital TOS link input and an 'outreach' socket
  • Designed to connect to TV sets using the amplifier’s ‘Outreach’ connector via the APL plate and SCART lead supplied.
  • Alternatively, the amplifier can be connected to TV sets using the amplifier’s onboard Digital TOS-link connector and a separately available TOS-link cable.
  • Metal compensation control helps improve intelligibility in rooms with high metal content
  • Adjustable mic, line level and 'outreach' controls
  • Drive (level) control allows the amplifier's output stage to be set-up to suit the exact characteristics of the application
  • Audio processor with automatic gain control, compensates for poor microphone techniques and helps suppress loud noises, hisses and clicks
  • Designed to be wall-mounted using the keyholes provided on the amplifier casing
  • Meets and exceeds the requirements of BS7594 and EN60118-4 when correctly installed
  • Amplifier Inputs: 3.5mm microphone jack socket, 3.5mm line level jack socket, Digital TOS Link, Outreach socket
  • Indicators: Power, Limit, Peak, Loop Fault
  • Controls: Mic, Line, Outreach, Metal Compensation, Loop Drive (Level)
  • Coverage: 50m² approx
  • Amplifier dimensions (WxHxD): 135x130x35mm
  • Amplifier weight: 380g

Contents

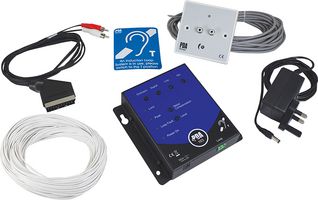

PDA103 amplifier with digital TOS link connector, PL1/PSU1 power supply, APL double phono outreach connection plate, 6m ‘Belden’ cable, APS SCART to double phono lead, 40m loop cable, ‘Hearing Loop Fitted’ sticker.

Product Information


:
Signet PDA103

:
UK Type G
