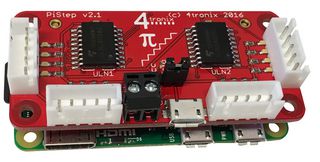

Quad Stepper Motor Controller for Raspberry Pi -
PISTEP2Q
- Manufacturer:
- 4TRONIX 4TRONIX
- Manufacturer Part No:
- PISTEP2Q
- Order Code:
- SC14268
Product Overview
This neat little board plugs directly into the Raspberry Pi GPIO header and provides 4 connectors for small stepper motors.
- Raspberry Pi Zero Form Factor, works with all versions of Raspberry Pi with 40pin GPIO connector
- Power Options:
- Raspberry Pi 5V
- 2-pin Terminal (whatever voltage is required for the motors)
- Micro USB - 5V only
- Pinouts:
- Physical pins 11, 12, 13, 15 for Motor A (GPIO 17, 18, 27, 22)
- Physical pins 16, 18, 22, 7 for Motor B (GPIO 23, 24, 25, 04)
- Physical pins 33, 32, 31, 29 for Motor C (GPIO 13,12,6,5)
- Physical Pins 38, 37, 36, 35 for Motor D (GPIO 20,26,16,19)
- Each pin has an associated white LED so you can see the stepper signals going through
Footnotes
Fully Assembled - No Soldering Required
Product Information
- :
- -
- :
- -
- :
- -
- :
- -
- :
- -
- :
- Control Board
- :
- -
