50MHz 2 Channel DDS Arbitrary & Pulse Signal Generator -

TG5012A

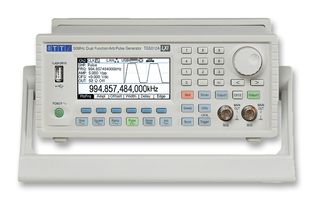

TG5012A - 50MHz 2 Channel DDS Arbitrary & Pulse Signal Generator

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
TG5012A
Order Code:
IN06921
Product Range
TG501xA Series
Technical Datasheet:
TG5012A   Datasheet
See all Technical Docs

Product Range Selector (TG501xA Series)

See all from this product range

Product Overview

The TG5012A is a two channel version of the TG5011A and has identical features augmented by multi-channel capabilities including coupling for frequency and/or level, full tracking, and defined phase offset. The channels can also be used as completely independent generators and they represent excellent value for money when compared with buying two generators.
  • Standard waveforms: sine, square, ramp, pulse, sin(x)/x, noise, exponential, logarithmic, PRBS
  • True pulse generator with variable delay and variable rise/fall
  • Waveform storage and file transfers using USB flash drives
  • Waveform Manager Plus for Windows editing software included
  • Large graphic LCD with simultaneous text and waveform display
  • 20mV to 20V pk-pk output from 50Ω ; multi function aux. out
  • Storage for multiple instrument set-ups in non-volatile memory
  • Compact half-rack 2U casing with protective buffers and handle
  • Programmable via USB and LAN (LXI) interfaces; GPIB optional
  • Two channels - independent or linked with coupled/tracking modes
  • Selectable coupling of frequency (equal or offset), amplitude/dc offset
  • Inter-channel phase offset of -360 to + 360 degrees with a 0.1 degree resolution
  • Comprehensive internal and external digital modulations: PRBS, AM, FM, PM, PWM, FSK, BSPK and Sum

Applications

Test & Measurement, Signal Processing, Sensing & Instrumentation

Footnotes

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.

Product Information


:
Arbitrary, Function, Pulse

:
2 Channel

:
TG501xA Series

:
50MHz

:
AM, BPSK, FM, FSK, PM, PWM, Sum

:
3 Years

:
EU, UK
