Digital Thermometer, 1722, SOIC8 -

DS1722S+

DS1722S+ - Digital Thermometer, 1722, SOIC8

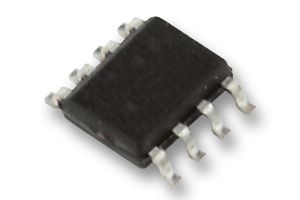

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
DS1722S+
Order Code:
SC20458
Product Range
-
Technical Datasheet:
DS1722S+   Datasheet
See all Technical Docs

Product Overview

DS1722S+ is a digital thermometer and thermostat with an SPI/3-wire interface that provides temperature readings which indicate the temperature of the device. No additional components are required; the device is truly a temperature-to-digital converter. Temperature readings are communicated from the DS1722 over a Motorola SPI interface or a standard 3-wire serial interface. The choice of interface standard is selectable by the user. For applications that require greater temperature resolution, the user can adjust the readout resolution from 8 to 12 bits. This is particularly useful in applications where thermal runaway conditions must be detected quickly. Applications for the DS1722 include personal computers/servers/workstations, cellular telephones, office equipment, or any thermally sensitive system.
  • Thermometer accuracy is ±2.0°C
  • Thermometer resolution is configurable from 8 to 12 bits (1.0°C to 0.0625°C resolution)
  • Wide analogue power supply range (2.65V to 5.5V)
  • Separate digital supply allows for 1.8V logic
  • Shutdown current is 0.5µA max 2.65V≤ VDDA ≤ 3.3V
  • SCLK rise and fall is 200ns max at -55°C to +120°C, 2.65V ≤ VDD ≤ 5.5V
  • Input resistance is 1Mohm min at CE to GND, SDI, SDO, SCLK to VDDD
  • 8-pin SO package
  • Measures temperatures from -55°C to +120°C

Footnotes

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party

Product Information


:
Digital

:
Digital

:
± 2°C

:
± 2°C

:
-55°C

:
-55°C

:
+120°C

:
120°C

:
SOIC

:
NSOIC

:
8Pins

:
2.65V

:
5.5V

:
1Channels

:
12 bits

:
3 Wire, SPI

:
-55°C

:
125°C

:
-

:
-

:
MSL 1 - Unlimited
