8 Channel Power Station 5.1mm with Leads -

ART-ISO-8UE4

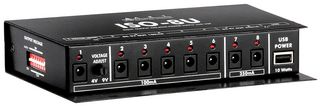

ART-ISO-8UE4 - 8 Channel Power Station 5.1mm with Leads
ART-ISO-8UE4 - 8 Channel Power Station 5.1mm with Leads
ART-ISO-8UE4 - 8 Channel Power Station 5.1mm with Leads

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
ART ART
Manufacturer Part No:
ART-ISO-8UE4
Order Code:
DP36705
Product Range
-

Product Overview

The ISO-8U provides 9V or 12V DC power for your devices. Each output is isolated to remove ground loops. One output is adjustable from 4-9V to simulate a dying battery. Each fixed output has a selectable voltage between 9V and 12V DC. 2x High power outputs can provide 250mA. All other outputs are capable of providing up to 100mA of current. Each output is individually current-limited and circuit protected. An output status indicator goes on when there is a fault (i.e. short, current protection, or temperature overload). USB-A jack provides high power charging up to 10W. The unit comes with a wide variety of leads to connect your devices including standard barrel jacks, 3.5mm connections and a battery clip adaptor.
  • DC outputs: 2x 250mA, 6x 100mA
  • USB power input: 10W
  • Output voltage set with dip-switches
  • Tie-Wrap slots for clean wire routing
  • Universal power supply
  • Comes with multiple adaptor leads:
  • - 6x 24" 5.1mm to 5.1mm barrel
  • - 2x 24" angled 5.1mm to 5.1mm barrel
  • - 1x Battery clip to 5.1mm barrel
  • - 1x Polarity reversal 5.1mm to 5.1mm barrel
  • - 1x Y lead (5.1mm) barrel
  • - 1x 3.5mm barrel to 5.1mm barrel
  • Input connection: 12V/2.5A universal
  • Output connections: 2.1mm x 5.1mm barrel connection, negative tip, power supply 85V to 240V AC, 50/60Hz
  • Dimensions (HxWxD): 34x173x71mm
  • Weight: 280g

Applications

Audio, Business, Domestic, Education, Live Events, Installations, Public, Music

Product Information


:
8Outlets

:
230V

:
250mA

:
-
