4x2 4K HDMI Matrix Switch with Dante Audio Decoder -

OR-DT42-4K22

New

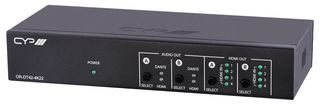

OR-DT42-4K22 - 4x2 4K HDMI Matrix Switch with Dante Audio Decoder
OR-DT42-4K22 - 4x2 4K HDMI Matrix Switch with Dante Audio Decoder
OR-DT42-4K22 - 4x2 4K HDMI Matrix Switch with Dante Audio Decoder
OR-DT42-4K22 - 4x2 4K HDMI Matrix Switch with Dante Audio Decoder

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
CYP CYP
Manufacturer Part No:
OR-DT42-4K22
Order Code:
AV30748
Product Range
-
Also Known As:
GTIN UPC EAN: 5060067156435
Catalogue page:
  WEB/9999

Product Overview

The CYP OR-DT42-4K22 integrates Dante® technology into a high performance 4×2 HDMI Matrix switch. The switch provides 4K UHD+ (18Gb/s) HDMI matrix routing and integrated Dante®/AES67 network audio support, including insertion and extraction. The switch is an ideal solution for switching between multiple sources in a control room, conference room or classroom while simultaneously providing and receiving high quality digital stereo audio via the connected network. Video resolutions up to 4K @60Hz 4:4:4, 8-bit with 8 channel LPCM or HD bitstream audio is supported for local routing while 2 channel LPCM audio is supported via Dante®. Basic control of video and audio routing is provided by front panel controls, with additional control via Web GUI, RS-232 and Telnet. Dante® audio management requires the use of 3rd party software, such as Dante® Controller from Audinate.
  • 4×2 Matrix routing with per-output analogue audio extraction
  • Supports up to 4K UHD+ (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output
  • Support passthrough of many audio formats including 8 channel LPCM, Bitstream, and HD Bitstream
  • Each output’s audio is selectable between the routed HDMI source or an independent Dante network audio source
  • Compatible with existing Dante and AES67 audio networks for transmission and reception of uncompressed audio with near-zero latency
  • Simple and easy network audio routing via 3rd party control software (available for both Windows and macOS systems)
  • Per-input EDID management with internal or external EDID options
  • Controllable via front panel buttons, Web GUI, Telnet, and RS-232
  • HDMI 2.0 and HDCP 1.x/2.2 compliant
  • Connections: 4x HDMI in, 2x HDMI out, 2x RJ45 (1x Dante, 1x IP control), 3-pin Phoenix (RS232), 2x 5-pin Phoenix (analogue stereo) and USB-A (service)
  • Dimensions (HxWxD): 43x240x104mm

Contents

Matrix switch, AC adaptor, terminal blocks and user guide
