4K HDMI to 12G SDI Converter -

PRO-H2SDI

New

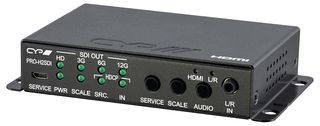

PRO-H2SDI - 4K HDMI to 12G SDI Converter
PRO-H2SDI - 4K HDMI to 12G SDI Converter
PRO-H2SDI - 4K HDMI to 12G SDI Converter
PRO-H2SDI - 4K HDMI to 12G SDI Converter

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
CYP CYP
Manufacturer Part No:
PRO-H2SDI
Order Code:
AV30786
Product Range
-
Also Known As:
GTIN UPC EAN: 5060067156411
Technical Datasheet:
PRO-H2SDI   Datasheet
Catalogue page:
  WEB/9999
See all Technical Docs

Product Overview

The CYP PRO-H2SDI HDMI to SDI Converter allows HDMI signals to be shown on two SDI displays while ensuring high bit rates of 12Gb/s to give you high resolution signal without any loss. This makes it easier to convert high definition HDMI signals with audio to SDI, ideal for long distance transmission and displaying on two SDI displays. The unit features a 2 channel audio input, allowing a DVI signal with audio to be converted to SDI in order to be shown on SDI displays. Furthermore, the device also has a built-in default EDID and a recordable EDID to guarantee image display compatibility with source equipment.
  • HDMI 2.0 and DVI 1.0 compatible, compliant with HDCP 2.2 & 1.x
  • Provides 3 mirrored outputs: 2x 12G-SDI & 1x HDMI
  • Supports up to 4K UHD+ (18Gb/s, 4K @50/60Hz 4:4:4, 8-bit) digital video input
  • SDI output supports the following SMPTE standards: ST 292-1 Level A, ST 425-1, ST 2081-10, ST 2082-10
  • SDI signal extension distance varies based on signal type: 80m (12G-SDI), 100m (6G-SDI), 200m (3G-SDI) or 260m (HDSDI)
  • 4K Sources can be downscaled to 1080p when displayed via the HDMI output to support lower cost local monitoring options
  • Supports passthrough of LPCM audio (up to 8 channels) from the HDMI input, or 2 channels from the analogue audio input
  • Intuitive control with the front panel buttons
  • Connections: HDMI in/out, 3.5mm audio and 2x BNC
  • Dimensions (HxWxD): 25x128x75mm

Contents

Converter, AC adaptor and user guide
