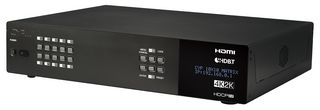

10x10 4K HDMI HDBaseT Lite Matrix with OAR, Audio IO Zones and Audio Matrix -

The CYP PUV-1082PL-4K22N HDMI/HDBaseT Matrix supports the transmission of video with resolutions up to 4K2K @60Hz (HDCP 2.2, HDMI 2.0) and multi-channel digital audio from 10 HDMI sources to 8 HDBaseT outputs and 2 independent HDMI 2.0 outputs. HDBaseT outputs allow transmission via a single Cat5e/6/7 cable up to 60m, whilst the independent HDMI outputs support cable lengths of up to 10m. This matrix supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio as well as 3D video content. This matrix incorporates an independent audio matrix with 14 audio outputs and 10 audio inputs. These inputs & outputs can also be used for de-embedding HDMI audio to the audio outputs and embedding audio to the HDBaseT and HDMI outputs. In addition, volume, mute, treble, bass and audio lip-sync correction controls are available on all direct audio outputs. Optical Audio Return (OAR) Technology allows the optical input on the PUV-1230PLRX receiver (not included) to be routed back to the audio matrix. Video signals beyond the bandwidth of HDBaseT will be automatically converted to ensure a picture is always transmitted to the HDBaseT receiver. Control is via manual selection buttons, IR, RS-232, Telnet or WebGUI. CYP provide control drivers for all the major control systems. This matrix switch is designed to be used with the CYP PUV-1230PLRX or PUV-1210PLRX receivers that can utilise the full PoH capabilities of the matrix.
