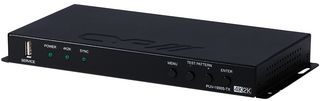

100m HDBaseT Transmitter & 4K HDMI Scaler - 4K, HDCP2.2, LAN, PoH, OAR -
PUV-1550S-TX
- Manufacturer:
- CYP CYP
- Manufacturer Part No:
- PUV-1550S-TX
- Order Code:
- AV27236
- Product Range
- -
- Also Known As:
- GTIN UPC EAN: 5060067155018
- Technical Datasheet:
- PUV-1550S-TX Datasheet
- Catalogue page:
- WEB/9999
Product Overview
- Transmit 4K video up to 70m via Cat 5e/6 and up to 100m via Cat 6A/7 network cables
- Upscales 1080p content to 4K or downscales 4K to 1080p (maintains same framerate)
- Supports control over remote devices via bi-directional RS232, IR and LAN connection
- RS232 and PoH (Power over HDBaseT) support
- Analogue audio output allows for audio de-embedding from the HDMI source
- Supports OAR (Optical Audio Return) and DAC (Digital to Analogue Conversion) audio conversion
- Wide 4K resolution support; 3840x2160 @24/25/30Hz, 4096x2160 @24/25/30Hz, 3840x2160 @50/60Hz (4:4:4), 4096x2160 @50/60Hz (4:4:4)
- Automatic RGB/YUV 4:4:4 to YUV 4:2:0 conversion
- High definition audio with 2/5.1/7.1ch LPCM, Dolby 2/5.1ch Dolby Atmos/Digital Plus/TrueHD and DTS-HD Master Audio
- Integrated EDID management, OSD and internal test pattern generator for troubleshooting
- Connections: HDMI in/out, RJ45 in/out, IR in/out, 3-pin Phoenix in (RS232) and 5-pin Phoenix out (analogue audio)
Contents
Transmitter, ac adaptor, IR emitter, IR extender, terminal blocks and user guide
