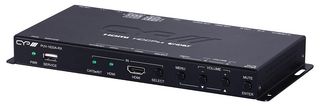

HDBaseT Switching Receiver with Amplifier for Reverse Power PUV-1600 Series -

The CYP PUV-1620A-RX HDMI over HDBaseT Receiver is a 2x1 switch with both standard HDMI and HDBaseT inputs, an HDMI output as well as amplified stereo audio output. This unit’s HDBaseT input can receive uncompressed high definition 4K UHD (up to 10.2Gb/s) video along with Ethernet, RS-232 and IR control over a single cable up to a distance of 100 metres, while the HDMI input supports high bandwidth 4K UHD+ sources (up to 18Gb/s) with support for 10/12-bit HDR. Pass-through of multiple digital audio formats such as LPCM (up to 8 channels), Bitstream and HD Bitstream is also supported via the HDBaseT and HDMI inputs. Additionally, the integrated 3.5mm mini-jack and class D stereo amplifier outputs allow audio to be extracted from the selected source (LPCM 2.0 source only) for local sound reinforcement. This switching receiver is ideal for use in residential or commercial point to point applications that require long HDBaseT signal transmission distances such as home theatres, conference rooms, huddle rooms or lecture halls. The integrated PoH (Power over HDBaseT) feature can provide power to compatible transmitters, providing greater flexibility in installations. This unit can be controlled in a wide variety of different ways including front panel buttons, Web GUI, Telnet and RS-232.
