4K HDMI to USB-C Capture & Recorder -

SY-XTREAM-C

New

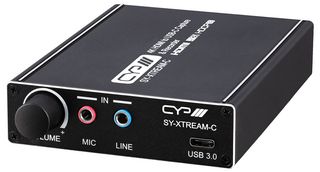

SY-XTREAM-C - 4K HDMI to USB-C Capture & Recorder
SY-XTREAM-C - 4K HDMI to USB-C Capture & Recorder
SY-XTREAM-C - 4K HDMI to USB-C Capture & Recorder
SY-XTREAM-C - 4K HDMI to USB-C Capture & Recorder

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
CYP CYP
Manufacturer Part No:
SY-XTREAM-C
Order Code:
AV30784
Product Range
-
Also Known As:
GTIN UPC EAN: 5060067156626
Catalogue page:
  WEB/9999

Product Overview

The CYP SY-XTREAM-C HDMI to USB video capture recorder with HDMI bypass can support resolutions up to 4K UHD+ (18Gb/s) with HDR via the bypass path while simultaneously streaming the audio and video signal at up to 4K @30Hz to a USB connected PC for capture or broadcasting. In addition to the embedded HDMI audio, a second audio stream can also be captured from the line input, mic input or both mixed together for use in your streaming or pre-record projects. The unit features video timing stabilisation to ensure that the USB capture stream won’t lock up or drop, even if the HDMI input source is intermittent or becomes disconnected. UAC (USB Audio Class) and UVC (USB Video Class) support means the unit will support most common video capture, chat or streaming software, including Free OBS (Open Broadcaster Software) streaming software which is available for Windows PC, macOS and Linux.
  • HDMI input and output supports up to 4K @60Hz with HDR bypass
  • HDCP 2.2 and HDCP 1.x compliant (unit does not support recording HDCP encrypted sources)
  • USB 3.0 connection allows uncompressed video and audio data capture up to 4K@30Hz, LPCM 2.0
  • 2 Additional analogue audio inputs via 3.5mm ports (1 x Stereo & 1 x Microphone)
  • Capture stereo audio from the HDMI input as part of the primary stream, as well as audio from one or both analogue audio inputs as a secondary audio stream
  • Integrated audio mixer supports combining the line and mic. analogue audio inputs
  • Complies with the UAC (USB Audio Class) and UVC (USB Video Class) standards, allowing the unit to support popular common capture and video streaming software
  • Supports video timing stabilization to help ensure a reliable and stable USB capture stream
  • Unit is powered directly via USB-C connection
  • Supports the Free OBS (Open Broadcaster Software) streaming software which is available for Windows 10 (or later), macOS and Linux
  • Connections: HDMI in/out, 2x 3.5mm audio (stereo & mic.) and USB-C
  • Dimensions (HxWxD): 23x84x113mm

Contents

Capture device and user guide

Footnotes

Note: Access to several software controllable features of this unit (beyond simple video capture), requires the use of the USB Video Capture Control software which is only available for Windows 10 or later PCs.

Warnings

Note: Does not support video capture of sources using HDCP encryption. 4K sources with frame rates higher than 30Hz are automatically converted to 4K @30Hz for USB capture.

Product Information


:
HDMI

:
USB Type C

:
-
