8CH Mic/Line Amplifier for Dante/AES67 -

DARK8MAI MKII

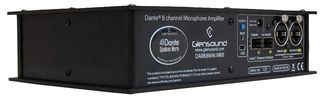

DARK8MAI MKII - 8CH Mic/Line Amplifier for Dante/AES67
DARK8MAI MKII - 8CH Mic/Line Amplifier for Dante/AES67
DARK8MAI MKII - 8CH Mic/Line Amplifier for Dante/AES67
DARK8MAI MKII - 8CH Mic/Line Amplifier for Dante/AES67
DARK8MAI MKII - 8CH Mic/Line Amplifier for Dante/AES67

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
GLENSOUND GLENSOUND
Manufacturer Part No:
DARK8MAI MKII
Order Code:
LS05648
Also Known As:
GTIN UPC EAN: 0617395416332
Technical Datasheet:
DARK8MAI MKII   Datasheet
See all Technical Docs

Product Overview

The DARK8MAI MKII (Microphone Analogue Input) is a very powerful Dante/ AES67 network audio amplifier and interface, in a robust stage box. It has 8x low noise mic/line inputs which are remotely controlled by a Windows10 app GlenController. Each input is on its own Neutrik 3-pin XLR socket and clever internal circuitry even changes the input impedance to correctly match the input type. The outputs of the microphone amplifiers are transmitted on a fully redundant Dante/ AES67 network interface. Having 8x low noise high quality microphone inputs makes the DARK8MAI MKII perfect for transporting audio circuits from a stage or a pitch side position to a mixer or other location within an audio network. The rugged design, PoE powering & remote control facility of the unit means that it can easily be placed and left unattended.
  • The very best low noise & distortion microphone amplifiers chipsets by Profusion
  • Presets can easily be saved and recalled when required
  • Redundant network interface setup
  • High quality analogue-to-digital converters
  • Dante chipset: Brooklyn II
  • Dynamic range: 111dB
  • Input impedance: 20kΩ
  • Frequency response: 20Hz to 22KHz
  • Noise: -93dBA
  • Phantom power: 48V
  • Network interface: 2x Neutrik Ethercon RJ45 sockets and 2x GBIC SFP module slots
  • Up to 192kHz audio sampling rate
  • PoE inputs: 2x standard 48V - 1x for each network RJ45 (consumption 15W)
  • All aluminium construction, anodized panels and laser etched front & rear panels
  • Remote control: Win10 application - direct install on PC (not App Store download)
  • Network cable included: 2m RJ45
  • Dimension (HxWxD): 59x238x157mm
  • Weight: 1.2kg

Applications

Audio, Broadcast, Consumer Electronics, Hobby & Education, Installations, Live Events, Music, Multimedia

Contents

DARK8MAI MKII, network cable, handbook, direct-install remote app
