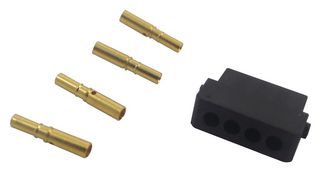

Rectangular Connector, Datamate L-Tek M80, 4 Contacts, Socket, 2mm, Crimp, 1 Row -
M80-8980405
New
- Manufacturer:
- HARWIN HARWIN
- Manufacturer Part No:
- M80-8980405
- Order Code:
- CN25302
- Product Range
- Datamate L-Tek M80
- Technical Datasheet:
- M80-8980405 Datasheet
Product Range Selector (Datamate L-Tek M80)
See all from this product rangeProduct Overview
- Small bore, suitable for 24AWG to 28AWG cable (Ø1.1mm max insulation)
- 2.00mm pitch high reliability Datamate connector system
- Number of contacts varies from 2 to 7 and 17 contacts also available
- UL94 V-0 black colour glass filled polyester moulding
- Gold plated beryllium copper clip
- Operating temperature range -55°C to 125°C
- Tin over nickel and gold plated brass shell
- Current rating of 3A maximum at 25°C and 2.2A at 85°C
- Working voltage of 800VAC/DC
- Contact resistance is initially 20mohm maximum
Applications
Industrial
Product Information
- :
- Datamate L-Tek M80
- :
- 4Contacts
- :
- Receptacle
- :
- 2mm
- :
- Crimp
- :
- 1 Row
- :
- Panel Mount
- :
- Gold Plated Contacts
- :
- Beryllium Copper
Technical Documents (4)
2 In stock Need more?
You can reserve stock now just order your desired quantity and checkout as normal. The quantity that cant be dispatched now will be placed on back order and sent as soon as we get a delivery from our supplier. You only get charged when the products are dispatched to you.
Extra stock is available upon order to the Supplier Lead Time which is approximately 07/07/25
Order before 3pm
Monday to Friday excluding National Holidays
???PF_PDP_RSP_SUP???
Pricing is unavailable. Please contact customer services.
- Price for:
- Each
- 1+
- 10+
- 100+
| Quantity | Price | Your Price (Inc. VAT) |
|---|---|---|
| 1+ | €2.6537 (€3.26) | ( ) |
| 10+ | €1.9992 (€2.46) | ( ) |
| 100+ | €1.7969 (€2.21) | ( ) |
