Receptacle, Panel, Size 7, 6 Way, Socket -

HR10A-7R-6S(73)

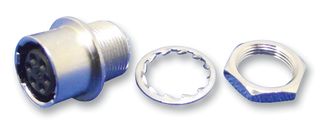

HR10A-7R-6S(73) - Receptacle, Panel, Size 7, 6 Way, Socket

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
HR10A-7R-6S(73)
Order Code:
CN17466
Product Range
HR10 Series
Also Known As:
110-0307-9-73
Technical Datasheet:
HR10A-7R-6S(73)   Datasheet
See all Technical Docs

Product Range Selector (HR10 Series)

See all from this product range

Product Overview

The HR10A-7R-6S(73) is a 6-position female high performance miniature Circular Connector with polyamide resin and PBT resin insulator, silver plated copper alloy contacts. The HR10 series receptacle has straight connector orientation, soldering wire termination method and push-pull locking style. It is recommended for use with 26AWG wire. Easy to operate, the single-action push-pull lock structure allows for quick and efficient locking and unlocking.
  • Simple, yet highly reliable design for compact, high density applications
  • Extremely easy mating/unmating operations
  • 2A Rated current
  • 100VAC, 140VDC Rated voltage
  • 10mΩ Maximum contact resistance
  • 1000MΩ Minimum insulation resistance
  • 300VAC Maximum withstanding voltage
  • 1000 Mating/unmating cycles

Applications

Industrial

Product Information


:
Circular Industrial

:
HR10 Series

:
Panel Mount Receptacle

:
6Contacts

:
Solder Socket

:
Push-Pull

:
Brass Zinc Alloy Body

:
Nickel

:
Copper Alloy

:
Silver

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (1)

Also Known As

110-0307-9-73
