SMD Fuse, Very Fast Acting, 1206, 125V, 250mA -

0466.250NR

0466.250NR - SMD Fuse, Very Fast Acting, 1206, 125V, 250mA

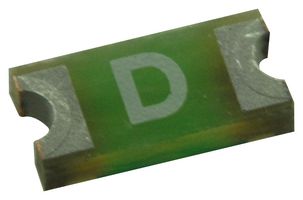

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
0466.250NR
Order Code:
FF04081
Product Range
466 Series
Technical Datasheet:
0466.250NR   Datasheet
See all Technical Docs

Product Range Selector (466 Series)

See all from this product range

Product Overview

The 0466.250NR is a 0.25A/125V very fast acting surface mount Fuse with advanced high temperature substrate body, 100% tin plated over nickel over copper termination and conformal coating element cover. The 466-series small (1206 size) thin-film device is designed for secondary protection of circuits used in space constrained applications. Alloy-based element construction provides superior inrush withstand characteristics (I²t) over ceramic or glass-based 1206 chip fuse products. Flat top surface for pick-and-place operations. Product is marked on top surface with code to allow amperage rating identification without testing. Low profile for height sensitive applications. This fuse is compatible with lead-free solders and higher temperature profiles.
  • Alloy based element construction
  • Flat top surface for pick-and-place operations
  • Low profile for height sensitive applications
  • 207.01mV Nominal voltage drop
  • 0.0518W Nominal power dissipation
  • 0.691Ω Nominal cold resistance
  • -55 to 90°C Operating temperature range

Applications

Safety, Portable Devices, Consumer Electronics, Computers & Computer Peripherals

Product Information


:
250mA

:
Very Fast Acting

:
125VAC

:
125VDC

:
1206 [3216 Metric]

:
466 Series

:
50A

:
50A

Find similar products Choose and modify the attributes above to find similar products.
