8Bit Flash MCU, 16F870, SDIL28 -

PIC16F870-I/SP

PIC16F870-I/SP - 8Bit Flash MCU, 16F870, SDIL28

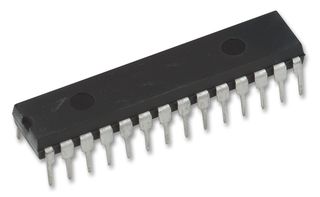

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
MICROCHIP MICROCHIP
Manufacturer Part No:
PIC16F870-I/SP
Order Code:
SC09251
Product Range
PIC16 Family PIC16F87x Series Microcontrollers
Technical Datasheet:
PIC16F870-I/SP   Datasheet
See all Technical Docs

Product Range Selector (PIC16 Family PIC16F87x Series Microcontrollers)

See all from this product range

Product Overview

The PIC16F870-I/SP is a mid-range PIC16 family 8-bit powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS flash based Microcontroller packs powerful PIC®(RISC) architecture. This product offer all of the advantages of the well recognized mid-range x14 architecture with standardized features including 3.5kB of addressable program memory size, 128bytes of data memory size and 5-channel 10-bit analog-to-digital (A/D) converter. This device operates at a maximum frequency of 20MHz with wide operating voltage of 2 to 5.5V.
  • 35 (14-bit wide) easy instructions to learn
  • 8 level hardware stack
  • 1 (9-bit) file select register
  • Hardware interrupt handling
  • In-Circuit Serial Programming™ (ICSP™)
  • Power on reset (POR)
  • Power-up timer (PWRT) and Oscillator start-up timer (OST)
  • Watchdog timer (WDT)
  • Programmable code protection
  • Power saving SLEEP mode
  • 64bytes of EEPROM data memory
  • Single 5V In-circuit serial programming capability
  • In-circuit debugging via two pins

Applications

Industrial, Automotive, Consumer Electronics, Motor Drive & Control, Lighting, Medical, Security

Product Information


:
PIC16 Family PIC16F87x Series Microcontrollers

:
PIC16

:
20MHz

:
3.5KB

:
28Pins

:
NDIP

:
22I/O's

:
USART

:
128Byte

:
5Channels

:
10Bit

:
4V

:
5.5V

:
-40°C

:
85°C

:
Through Hole

:
PIC16

:
PIC16F8xx

:
-

:
-
