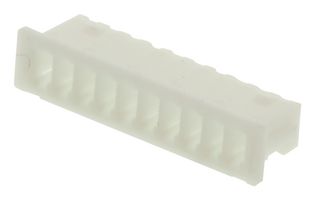

Receptacle Housing, 10 Way -

51021-1000

51021-1000 - Receptacle Housing, 10 Way

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
MOLEX MOLEX
Manufacturer Part No:
51021-1000
Order Code:
CN12440
Product Range
PicoBlade 51021 Series
Also Known As:
GTIN UPC EAN: 0800753575677
Technical Datasheet:
51021-1000   Datasheet
See all Technical Docs

Product Range Selector (PicoBlade 51021 Series)

See all from this product range

Product Overview

51021-1000 is a 51021 series, 10 circuit, single row, 1.25mm Pitch, PicoBlade receptacle crimp housing with friction lock. It mates with 53047 PicoBlade vertical, single row, through hole headers, 53048 PicoBlade right-angle, single row, through hole headers, 53261 PicoBlade right-angle, single row, surface mount headers, 53398 PicoBlade vertical, single row, surface mount headers, 51047 PicoBlade single row plug housings. It is used with 797580006, 797580014, 797581059, 797581060, 797581061 cable assembly, 50058 PicoBlade female crimp terminals, 50079 PicoBlade female crimp terminals, 214920 Pre-Crimped lead PicoBlade female-to-PicoBlade female, 214921 Pre-Crimped lead PicoBlade female-to-pigtail.
  • CSA LR19980, UL E29179 approved
  • 94V-0 flammability
  • Lock to mating part
  • Natural colour polyester resin material
  • Polarized to mating part
  • Operating temperature range from -40°C to +105°C
  • 1.25mm pitch - mating interface

Product Information


:
PicoBlade 51021 Series

:
Receptacle

:
10Ways

:
1.25mm

:
Molex PicoBlade 50058 & 50079 Series Female Crimp Terminals

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (2)

Also Known As

GTIN UPC EAN: 0800753575677
