Digital Storage Oscilloscope, 4-Channel, 100MHz -

MP720665

MP720665 - Digital Storage Oscilloscope, 4-Channel, 100MHz
MP720665 - Digital Storage Oscilloscope, 4-Channel, 100MHz
MP720665 - Digital Storage Oscilloscope, 4-Channel, 100MHz

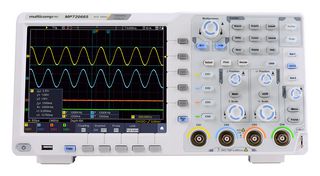

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
MP720665
Order Code:
IN09321
Technical Datasheet:
MP720665   Datasheet
See all Technical Docs

Product Overview

MP720665 from Multicomp Pro is an 8-bit, 4 channel 100MHz touchscreen digital oscilloscope. This device offers the same specification and functionality as Multicomp Pro MP720025, however also features an in-built 2 channel 25MHz arbitrary function generator. This device also includes frequency counter and multimeter functionalities, decoder, multi-interface integration, SCPI and LabVIEW support.
  • 8" high-resolution touch-screen LCD screen (800x600)
  • 45,000 frame/sec waveform refresh rate, multi-level grey scale and colour temperature display
  • 2 channel, 25MHz arbitrary waveform generator function
  • Horizontal rate - 2ns/div - 1000s/div, step by 1-2-5
  • Sample rate/real-time accuracy of ±2.5 ppm
  • DC, AC and GND input couplings
  • 1mV/div - 10V/div vertical sensitivity (at input)
  • Edge, video, pulse, slope, runt, windows, timeout, Nth edge, logic, I2C, SPI, RS232, CAN trigger
  • I2C, SPI, RS232 and CAN bus decoding
  • Auto, normal and single trigger modes
  • USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN and VGA communication interfaces
  • Dimension is 340 x 177 x 90mm

Contents

Digital storage oscilloscope, 4x probes, Probe manual, Accessories bag, USB Type B cable, Operating instructions, CD-ROM, UK & EU power cords.

Footnotes

Calibration services available for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration page for more details.

Product Information


:
-

:
4 Channel

:
100MHz

:
1GSPS

:
40 Mpts

:
3.5ns

:
LCD Colour

:
DSO, Power cord, USB cable, CD-Rom-Manual, Probes, Probe Adjust Tool

:
3 Years

:
EU, UK
