Hearing Induction Loop Amplifier Kit for Lifts and Elevators -
AKM2
- Manufacturer:
- SIGNET / AC SIGNET / AC
- Manufacturer Part No:
- AKM2
- Order Code:
- DP36074
- Technical Datasheet:
- AKM2 Datasheet
Product Range Selector (AKx)
See all from this product rangeProduct Overview
- Satisfies the requirements of the disability Discrimination Act (DDA) and BS EN 81-70 (5.4.4.3 c)
- Fully compliant with the relevant parts of BS 7594 (When correctly installed and BS EN 60118-4
- 2 Line level inputs connect directly to the PDA200E/L induction loop amplifier; 2x inputs from the floor announcement system and emergency communication system
- Loop cable can installed either on top, or in the suspended ceiling of a lift car
- Internal tamper-resistant drive, level and tone controls can be manually adjusted to suit system requirements
- Two balanced/unbalanced line level inputs
- Input peak (limit), output drive 91, 2, 3 Peak current) and power on (power) LEDs
- Fully automatic compressor limiter which maintains the loop signal to improve intelligibility
- Robust metal enclosure for mounting on lift car
- Easy to fit with straightforward internal screw connectors allowing installation by a competent electrician
- Microphone Impedance: 600Ω balanced/unbalanced
- Microphone Sensitivity: 2-5mV (-46db to -50db)
- Microphone Phantom: 12V
- Line Input impedance: 10kΩ balanced/unbalanced
- Line Sensitivity: 0dbv (300mV rms to 1.5V rms)
- 100V Line Input impedance: 200kΩ
- 100V Line Sensitivity: +40dbv
- Bandwidth: 40Hz to 8kHz
- Input dynamic range: 36dB
- Loop impedance: 0.2 to 2Ω
- Dimensions (WxHxD): 273x200x77mm
- Weight: 2.9kg
Contents

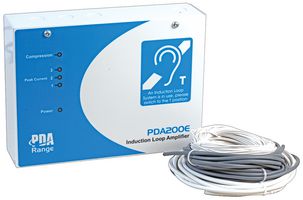

1x PDA200E/L induction loop amplifier, 2-Core screened cable, 0.5mm loop cable, 0.5mm mains cable and installation accessories.
