RJ45 Cat6 Plugs, Pack of 200 -

PXSPDY6B#200

PXSPDY6B#200 - RJ45 Cat6 Plugs, Pack of 200
PXSPDY6B#200 - RJ45 Cat6 Plugs, Pack of 200

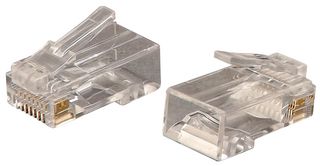

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
PXSPDY6B#200
Order Code:
CN22974
Product Range
Speedy Series
Also Known As:
GTIN UPC EAN: 5055386509147
Technical Datasheet:
PXSPDY6B#200   Datasheet
See all Technical Docs

Product Range Selector (Speedy Series)

See all from this product range

Product Overview

  • Allows Category 6 twisted pair wires to be inserted through the body and pulled out of the front to ensure the correct wiring order before crimping
  • By pulling the cores into the plug, twists can easily be maintained up to the contacts, enabling fully rated category performance
  • Contact blades are suitable for stranded or solid wire cores from 22‐26 AWG (0.65 – 0.40mm), with insulation up to 0.98 ± 0.04mm O.D
  • Perfect solution for rapid termination
  • Suitable for termination of solid or stranded UTP cables with sheath O.D. of 5.0 – 6.5mm
  • Faults and failures minimised
  • Simple one piece design
  • Less cable scrap and wastage
  • Designed for use with transparent polycarbonate flush strain relief boots (PSPDY6) and coloured PVC flush strain relief boots (PS6)
  • Materials: Housing: Polycarbonate UL94‐V0 and Contact pin: 50" µ/1.27 µm gold plating over nickel over phosphor bronze
  • Electrical: Contact resistance: 30milliΩ max. Insulation resistance: DC 300V, 100 MegaΩ min and Dielectric withstanding voltage: 300V AC for one minute
  • Mechanical: Working temperature: ‐25‐55˚C, Durability: 1000 mating cycles min. and Tensile strength between plug and jack is higher than 7.7kgf

Product Information


:
Speedy Series

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (1)

Also Known As

GTIN UPC EAN: 5055386509147

5 In stock Need more?

???PF_PDP_RSP_SUP???

€61.3782 ( €75.50  Inc. VAT)

Pricing is unavailable. Please contact customer services.

Price for:
Pack of 200
Multiple: 1 Minimum: 1
  • 1+
  • 5+
  • 10+
Quantity Price Your Price (Inc. VAT)


1+ €61.3782 (€75.50)
Promotional price
Contract Price
Web only price
Web only contract price
  ( )
5+ €54.7092 (€67.29)
Promotional price
Contract Price
Web only price
Web only contract price
  ( )
10+ €48.0285 (€59.08)
Promotional price
Contract Price
Web only price
Web only contract price
  ( )
