HDMI 4K HDBaseT Extender Set -

SY-HDBT-70SP-SET

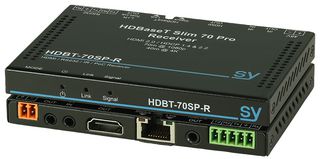

SY-HDBT-70SP-SET - HDMI 4K HDBaseT Extender Set
SY-HDBT-70SP-SET - HDMI 4K HDBaseT Extender Set

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
SY-HDBT-70SP-SET
Order Code:
AV29209
Also Known As:
GTIN UPC EAN: 5060070252438
Technical Datasheet:
SY-HDBT-70SP-SET   Datasheet
See all Technical Docs

Product Overview

This extender set is a unique solution that is designed with the professional AV installers in mind. It is still the slimmest HDBaseT extender in the world with tremendous flexibility and extraordinary capabilities. This Extender set supports all input resolutions to up to 4K with bi-directional IR, and two independent pass-through RS232 ports. It comes as 2x boxes (transmitter and receiver) and some additional features for setup and maintenance. The transmitter unit (SY-HDBT-70SP) also supports de-embedded audio (L/R and Mini-Toslink optical output), as well as many other useful solutions such as: HDCP management, EDID settings, video Down-Scale, Test Patterns, Video Keep Alive, Temperature & CEC control and diagnostics.
  • Input: HDMI 2.0 - HDR and HBR supported
  • Input HDCP: 1.4 and 2.2; Output HDCP: Fully controlled – Pass, 1.4, 2.2, cascade mode
  • IR IN/OUT: 25kHz to 60kHz carrier frequency
  • All VESA resolutions up to 4096x2160p 50/60Hz
  • All PC resolutions including 1920x1200p 60/75Hz
  • Colour depth: 8, 10, 12-bit
  • Output Video: Down-scaled signals, with all others as pass-through video
  • Audio formats: 2.0 / 2.1 / 5.1 / 7.1 channel LPCM, Dolby, AC3, DTS
  • Audio outputs: (de-embed) Mini TosLink (optical); transmitter has a 3.5mm analog stereo (L/R) Jack
  • Power consumption: 9W max.
  • PSU Rating: 48V DC @ 0.5A
  • Operating temperature: 0 to +40°C
  • Dimensions (HxWxD): 12x74x109mm
  • Weight: 165g (each)

Applications

Audio Visual, Audio, Signal Processing, Consumer Electronics, Installations

Contents

1x SY-HDBT-70SP-T, 1x SY-HDBT-70SP-R 4x Brackets, 2x 5 pin female captive screw connector, 1x set of IR Emitter / IR Receiver (eye), 1x 48V DC/0.5A power adaptor
