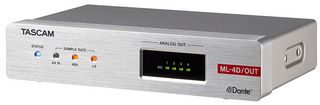

4x4 Dante-Euroblock Analog Converter with Mixer/DSP -

ML-4D-OUT-E

ML-4D-OUT-E - 4x4 Dante-Euroblock Analog Converter with Mixer/DSP
ML-4D-OUT-E - 4x4 Dante-Euroblock Analog Converter with Mixer/DSP
ML-4D-OUT-E - 4x4 Dante-Euroblock Analog Converter with Mixer/DSP
ML-4D-OUT-E - 4x4 Dante-Euroblock Analog Converter with Mixer/DSP
ML-4D-OUT-E - 4x4 Dante-Euroblock Analog Converter with Mixer/DSP
ML-4D-OUT-E - 4x4 Dante-Euroblock Analog Converter with Mixer/DSP

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
TASCAM TASCAM
Manufacturer Part No:
ML-4D-OUT-E
Order Code:
DP36680
Product Range
TASCAM Dante-Analog Converters

Product Range Selector (TASCAM Dante-Analog Converters)

See all from this product range

Product Overview

The ML-4D/OUT is an exquisite analog output unit that converts 4x Dante input signals into 4x line output signals. In addition, it also supports 4 channel Dante output, making it possible to use virtually any audio source within the established Dante network. It features Euroblock connectors for analog outputs. A key advantage of the product is the DSP processor built into each unit. By providing not only mixing functions and EQ but also dynamic processing, automatic level control, auto-ducking, routing and noise compensation - even small systems can fully perform without additional signal processing or mixing devices. From the input of microphone signals to the output of powered speakers or recording devices, the Dante Compact Processor Series can build up a complete small system on their own. Remote control is possible via software applications available for Mac, Windows, iOS and Android devices: Tascam DCP Connect for configuration and Tascam EZ Connect for end users - both of which are simple to use and included with the units.
  • Front panel indicators for operation status, output signals and current sample rate
  • Up to 50x scene presets can be saved
  • Control software available (compatible with Windows/Mac/iOS/Android devices): Tascam MX Connect for system integrators, Tascam EZ Connect for end users
  • Attachment brackets included for mounting the unit i.e. under a table top
  • Half-rack size chassis (1U)
  • Sampling rate: 44.1/48/88.2/96 kHz,16/24-bit
  • Analog outputs: 4x Euroblock (balanced) 3.81mm pitch
  • DATA/DATA+PoE connectors RJ45 Dante 1000BaseT
  • Frequency response: 20Hz to 40kHz
  • THD: 0.002%
  • SNR: 105dB
  • Crosstalk: 100dB
  • Dynamic range: 108dB
  • Operating temperature: 0 to 40°C
  • Powered by PoE class 0
  • Dimensions (HxWxD): 45x214x136mm
  • Weight: 863g

Applications

Audio, Broadcast, Business, Commercial, Education, Hobby & Education, Professional, Music
