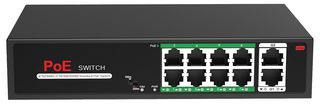

8-Port Ethernet Desktop PoE Switch -

An 8 port PoE switch with dual uplink, ideal for distributed architecture systems. The PoE switch by Vista offers the installer an effective solution for creating simple but powerful network designs. The compact switch allows connection for 4 local cameras via the PoE ports. The switch has dual Up-Link ports, one of which can be used to connect to a local server or NVR. Leaving the other uplink port, for connection to the main network and client PCs. The Vista switches can run in 2 modes, in normal mode they operate as a standard network switch, with communications between each of the 8 PoE ports, allowing the standard 90m transmission distance. With the flick of a switch the CCTV mode can be engaged, turning off communication between the 8 PoE ports but allowing communication between each individual port and the 2 Up-Link ports, but greatly extending the PoE transmission distance up to 250m. The VSW8 can deliver up to 120W across all 8 ports, ideal for static cameras, or 2 higher consumption PTZ domes.
