22 Channel Rack Digital Mixer/Recorder with BT & USB -

L-20R

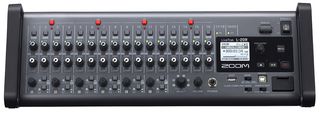

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
ZOOM ZOOM
Manufacturer Part No:
L-20R
Order Code:
DP36642
Product Range
-
Also Known As:
GTIN UPC EAN: 4515260020973

Product Overview

The Zoom LiveTrak L-20R is a rack-mountable digital mixer that allows control of the live mix right from the stage with the use of an iPad. With wireless control, 20 discrete channels, 22 tracks of recording and six custom monitor mixes, the L-20R offers a complete solution for any venue. With iPads, the FOH engineer and 6x musicians can control their own mix from anywhere in the venue. The L-20R’s versatile design provides easy access for plugging in your leads. It also works as 22x4 USB audio interface. It has all basic features of a sound mixer, plus some additional functions and effects. It has a bright backlight LCD (128x64) that is easily visible in any conditions, and is supplied with a BT adaptor and power DC adaptor.
  • 16x Mono TRS combo jacks inputs include single-knob compression and gain control, fit with advanced preamps
  • The included BTA-1 connects a master iPad to the L-20R; other iPads connect to the master via WiFi
  • Master and Headphone options allow you to design 6x custom mixes for master & 6x monitor OUT
  • Record up to 512GB of audio to SD card
  • Additional 2x stereo RCA line inputs
  • Outputs: Master (XLR L/R), 6x Monitor (TRS), 6x Monitor (3.5mm headphones), headphones 3.5mm jack, 2x EFX send
  • 20x Digital effects
  • Maximum simultaneous recording: 22x Channels
  • Maximum simultaneous playback: 20x Channels
  • Recording formats: WAV 44.1/48/96kHz, 16/24-bit, mono/stereo
  • Computer interface: USB2.0 (also to import/export projects)
  • 22x4 USB audio interface mode
  • Rack mountable
  • Power supply: 12V DC, 2A (adaptor provided)
  • Dimensions (HxWxD): 152x438x158mm
  • Weight: 2.5kg

Applications

Audio, Broadcast, Commercial, Consumer Electronics, Hobby & Education, Music, Education, Live Events

Contents

LiveTrak L-20R, AD-19 AC adaptor, BTA-1 Bluetooth adaptor, rack ears

Footnotes

MacOS/Windows USB interface operation is not guaranteed when used with USB hubs or expansion cards.
