Hall Effect Sensor, Speed and Direction, SNDH Series, Square Wave Output, 500 mV out, 4.5 to 18 Vdc -

SNDH-T4L-G01

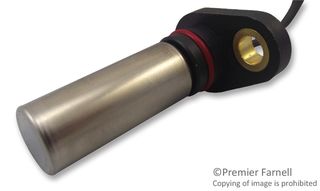

SNDH-T4L-G01 - Hall Effect Sensor, Speed and Direction, SNDH Series, Square Wave Output, 500 mV out, 4.5 to 18 Vdc
SNDH-T4L-G01 - Hall Effect Sensor, Speed and Direction, SNDH Series, Square Wave Output, 500 mV out, 4.5 to 18 Vdc

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
HONEYWELL HONEYWELL
Manufacturer Part No:
SNDH-T4L-G01
Order Code:
SN36931
Product Range
SNDH Series
Technical Datasheet:
SNDH-T4L-G01   Datasheet
See all Technical Docs

Product Range Selector (SNDH Series)

See all from this product range

Product Overview

The SNDH-T4L-G01 is a dual hall Speed and Direction Sensor that provides speed and direction information using a quadrature output with signals 90° phase shifted from each other. Target direction is determined by output lead/lag phase shifting. This product is designed for applications where extremely high resolution is required at wide frequency range of 1 to 15kHz and large air gaps. BiCMOS (bipolar complementary metal-oxide-semiconductor) hall-effect technology, using advanced digital signal processing for dynamic off-set cancellation, provides enhanced air gap performance and phase shift accuracy over most conditions.
  • Hall-effect magnetic sensing technology
  • Advanced performance dynamic offset self calibration
  • Air gap up to 2mm (0.08")
  • Near zero speed
  • EMI hardened
  • High frequency switching capability
  • -40 to 150°C continuous operating temperature
  • Short-circuit protection
  • Reverse voltage protection
  • Open collector output
  • Low jitter output

Applications

Metering, Signal Processing, Motor Drive & Control

Warnings

ESD sensitive device, take proper precaution while handling the device.

Product Information


:
4.5VDC

:
18VDC

:
Wire Leads

:
-40°C

:
150°C

:
-

:
-

:
-

:
-

:
-

:
-

:
15mm

:
-

:
SNDH Series

Find similar products Choose and modify the attributes above to find similar products.
