Manufacturer Part No	Order Code	Description / Manufacturer	Price For	Price Ex. VAT (Inc. VAT)	Quantity	Cable Shielding	Thermocouple Wire Type	Length - Imperial	Length - Metric	No. of Max Strands x Strand Size	Wire Gauge	Conductor Area CSA	Conductor Type	Colour Code Standard	Insulation	Operating Temperature Min	Operating Temperature Max	Product Range
						Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending

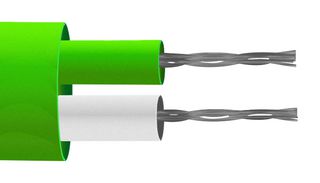

WK-150/50M (IEC)	SN35306 Data Sheet + RoHS	Extension Cable Type K, 50m LABFACILITY The WK-150/50M (IEC) is a 50m 2-core thermocouple K Unscreened Cable with 7/0.2mm conductors laid flat PVC insulated and overall PVC sheath. The round general purpose cable is both waterproof and very flexible. • CPR: Not Yet Qualified • Tolerance class-2 ... You previously purchased this product. View in Order History	Each	1+ €68.0355 (€83.68) 10+ €57.7395 (€71.02) 25+ €56.6046 (€69.62)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	-	K	164ft	50m	7 x 0.2mm	-	0.219mm²	Stranded	IEC	PVC (Polyvinylchloride)	-10°C	105°C	Type K
XF-244-FAR	SN36341 + RoHS	Wire, Thermo, T, PTFE, 1/0.2mm LABFACILITY XF-244-FAR is an IEC Type T PTFE insulated twin twisted pair thermocouple cable/wire. • 1/0.2mm strand size • 25m cable length • Good mechanical strength and flexibility • Resistant to oils, acids adverse agents and fluids You previously purchased this product. View in Order History	Each	1+ €23.5989 (€29.03) 10+ €14.8707 (€18.29)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	-	T	82ft	25m	1 x 0.2mm	-	0.032mm²	Stranded	IEC	PTFE (Polytetrafluoroethylene)	-75°C	250°C	Type T
WK-150/10M (IEC)	SN35305 Data Sheet + RoHS	Extension Cable, Type K , 10m LABFACILITY The WK-150/10M (IEC) is a 10m green/white 2-conductor Type-K thermocouple extension and compensating cable, made of green PVC jacket, meets IEC standard. The extension cable has a temperature vs EMF relationship to an appropriate standard over the complete... You previously purchased this product. View in Order History	Each	1+ €17.6436 (€21.70) 10+ €16.0758 (€19.77) 25+ €15.7482 (€19.37)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	-	K	32.8ft	10m	7 x 0.2mm	-	0.219mm²	Stranded	IEC	PVC (Polyvinylchloride)	-10°C	105°C	Type K
XF-242-FAR	SN36340 + RoHS	Wire, Thermo, J, PTFE, 1/0.2mm LABFACILITY XF-242-FAR is an IEC type J PTFE insulated twin twisted pair thermocouple cable / wire. • 1/0.2mm stranded size • 25m cable length • Good mechanical strength and flexibility • Black (+) and white (-) cable colour • Temperature range from -75°C to 260°C • I... You previously purchased this product. View in Order History	Each	1+ €23.7978 (€29.27) 10+ €20.7324 (€25.50) 25+ €20.3112 (€24.98)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	-	J	82ft	25m	1 x 0.2mm	-	0.032mm²	Stranded	IEC	PTFE (Polytetrafluoroethylene)	-75°C	250°C	Type J
WK-150	SN36928 Data Sheet + RoHS	PVC Insulated Flat Pair Thermocouple Type K Extension Cable, 100m LABFACILITY The WK-150 is a 100m PVC Insulated Flat Pair Thermocouple Extension Cable. All round general purpose cable, both waterproof and very flexible, thermocouple extension type for K and 7/0.2mm stranded conductor available. • -10 to 105°C Insulation rating • Cl... You previously purchased this product. View in Order History	Reel of 100	1+ €121.7151 (€149.71) 3+ €112.2615 (€138.08)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	-	K	328ft	100m	7 x 0.2mm	-	0.219mm²	Stranded	IEC	PVC (Polyvinylchloride)	-10°C	105°C	-

WK-075/25M (IEC)	SN36914 Data Sheet + RoHS	PVC Insulated Type KX Thermocouple Extension Cable, Green, 25m LABFACILITY • Glass fibre insulated extension cable with stainless steel over braiding • Thermocouple types: KX • 7/0.2mm stranded conductors • Good temperature resistance but not suitable where fluids are present • All types; conductors are made from associated K • ... You previously purchased this product. View in Order History	Each	1+ €80.9991 (€99.63) 3+ €68.5269 (€84.29)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	-	KX	82ft	25m	7 x 0.2mm	24AWG	0.22mm²	-	-	-	-	350°C	Type K

WK-200X100	SN36849 Data Sheet + RoHS	Type K Thermocouple, PTFE Twisted Pair, 2-Core Unscreened Cable, 100m LABFACILITY • CPR: Not Yet Qualified • Single pair of PTFE insulated conductors twisted together • Thermocouple types K • Good mechanical strength and flexibility, resistant to oils, acids and other adverse fluids • Suitable for steam and pressure applications, autoc... You previously purchased this product. View in Order History	Reel of 1	1+ €87.9255 (€108.15) 3+ €81.1395 (€99.80)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	Unscreened	K	328ft	100m	1 x 0.2mm	-	0.032mm²	Stranded	IEC	PTFE (Polytetrafluoroethylene)	-75°C	250°C	Type K

WK-200X50	SN36848 Data Sheet + RoHS	Type K Thermocouple, PTFE Twisted Pair, 2-Core Unscreened Cable, 50m LABFACILITY • PTFE twin twisted pair for extending or making simple thermocouples • Single pair of PTFE insulated conductors twisted together • Thermocouple types K • Good mechanical strength and flexibility, resistant to oils, acids and other adverse fluids • Suitab... You previously purchased this product. View in Order History	Reel of 1	1+ €34.866 (€42.89) 3+ €32.1867 (€39.59)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	Unscreened	K	164ft	50m	1 x 0.2mm	-	0.032mm²	Stranded	IEC	PTFE (Polytetrafluoroethylene)	-75°C	250°C	Type K

WK-041/10M (IEC)	SN36912 Data Sheet + RoHS	Type K Thermocouple Extension Insulated Cable, 10m LABFACILITY • CPR: Not Yet Qualified • Glass fibre insulated extension cable • Flat pair construction • Solid 1/0.3mm conductors • Good temperature resistance but not suitable where fluids are present • Tolerance Class 2 to IEC-584 • Insulation rating -60°C to 350°C ... You previously purchased this product. View in Order History	Each	1+ €77.8401 (€95.74) 3+ €65.8593 (€81.01)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	-	K	32.8ft	10m	1 x 0.315mm	-	0.078mm²	-	-	-	-	350°C	Type K

XF-243-FAR	SN36899 Data Sheet + RoHS	Wire, Thermo, K, PTFE, 1/0.2mm LABFACILITY The XF-243-FAR is a 25m green/white 2-conductor Type-K PTFE insulated Twin Twisted Pair Cable for extending or making simple thermocouples. It is suitable for stream and pressure applications, autoclaves, sterilisers etc. • CPR: Not Yet Qualified • Good me... You previously purchased this product. View in Order History	Each	1+ €17.9361 (€22.06) 3+ €16.5555 (€20.36)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	Unscreened	K	82ft	25m	1 x 0.2mm	-	0.032mm²	Stranded	IEC	PTFE (Polytetrafluoroethylene)	-75°C	250°C	Type K

WV-100/25M (IEC)	SN35308 Data Sheet + RoHS	Compensating Cable Type VX, 25m LABFACILITY • Thermocouple compensating cable PVC insulated flat pair • Thermocouple type VX (KCB) • 7/0.2mm stranded conductors • Green jacket, +Green/-white cores, 25m reel length • PVC insulated flat pair construction • Conductors laid flat PVC insulated with over... You previously purchased this product. View in Order History	Each	1+ €14.4378 (€17.76) 10+ €12.6828 (€15.60)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	-	VX	82ft	25m	7 x 0.2mm	-	0.219mm²	Stranded	IEC	PVC (Polyvinylchloride)	-10°C	105°C	Type VX

WK-302/25M (IEC)	SN36911 Data Sheet + RoHS	Type K Thermocouple Unscreened 2-Core Cable, Green, 25m LABFACILITY WK-302/25M (IEC) is an IEC Type K PTFE insulated flat pair thermocouple cable/wire. • 25m length • 7/0.2mm strand size • Good mechanical strength and flexibility • Resistant to oils, acids adverse agents and fluids • Green outer cable colour, green (+) and... You previously purchased this product. View in Order History	Each	1+ €72.0603 (€88.63) 3+ €66.5145 (€81.81)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	Unscreened	K	82ft	25m	7 x 0.2mm	-	0.219mm²	Stranded	IEC	PTFE (Polytetrafluoroethylene)	-75°C	250°C	Type K

WC-006/25M	SN36918 Data Sheet + RoHS	RTD Screened 4 Core Thermocouple Extension Cable, PVC Insulated, Pt100, 7/0.2 mm, 25m LABFACILITY WC-006/25M is a 4 core PVC insulated, tin plated copper screen, PRT sensor cable / wire. • 7/0.2mm strand size • 25m cable length • RTD colour code • Temperature range from -10°C to +105°C You previously purchased this product. View in Order History	Each	1+ €36.2232 (€44.55) 3+ €33.4503 (€41.14)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	-	RTD	82ft	25m	7 x 0.2mm	-	0.219mm²	Stranded	IEC	PVC (Polyvinylchloride)	-10°C	80°C	-

WK-074/50M (IEC)	SN36913 Data Sheet + RoHS	PVC Insulated Type K Thermocouple Extension Cable, 50m LABFACILITY The WK-074/50M (IEC) is a 50m shielded Extension Cable with PVC insulated and screened construction, + green/- white cores and green jacket, 7/0.2mm stranded conductor. This cable features twisted cores and screened for reduced electrical noise. Conductors... You previously purchased this product. View in Order History	Each	1+ €80.9757 (€99.60) 3+ €68.5035 (€84.26)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	-	K	164ft	50m	7 x 0.2mm	-	0.219mm²	Stranded	IEC	PVC (Polyvinylchloride)	-10°C	105°C	-

WJ-200	SN36929 Data Sheet + RoHS	Type J Thermocouple Extension Cable, Black, 100m LABFACILITY The WJ-200 is a 100m unshielded Extension Cable with PVC insulated flat pair construction, + black/- white cores and black jacket, 7/0.2mm stranded conductor. This cable features conductors laid flat PVC insulated with overall PVC sheath. Suitable for use ... You previously purchased this product. View in Order History	Reel of 100	1+ €66.6666 (€82.00) 3+ €61.5303 (€75.68)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	-	J	328ft	100m	7 x 0.2mm	-	0.219mm²	Stranded	IEC	PVC (Polyvinylchloride)	-10°C	105°C	-

WK-359	SN36930 Data Sheet + RoHS	Type KX Thermocouple Extension Cable, Screened PVC Insulated, 100m LABFACILITY • PVC insulated & screened • Twisted cores & screened construction for reduced electrical noise • Conductors PVC insulated and twisted together, aluminium Mylar® tape screen & drain wire, overall PVC sheath • General purpose cable both waterproof and flex... You previously purchased this product. View in Order History	Reel of 100	1+ €99.9765 (€122.97) 3+ €92.2779 (€113.50)	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	-	K	328ft	100m	7 x 0.2mm	-	0.219mm²	Stranded	IEC	PVC (Polyvinylchloride)	-10°C	105°C	Type K
